SWITCH HARNESSES 508 SERIES

Switch harnesses developed by Yesa Elektronik are compatible with the safety and unsafety valves of various brands that are found in the market.

Movement mechanism is connected to the valve shaft and there are different types which move together. This feature prevents the sticking of the contact and makes its service life longer.

Our product has a quick assembly and has utility model patent.Switch harnesses are determined for the number of burners in the devices and assembly gaps between the gas valves.

3D Image TECNICAL IMAGE TECNICAL PROPERTIES

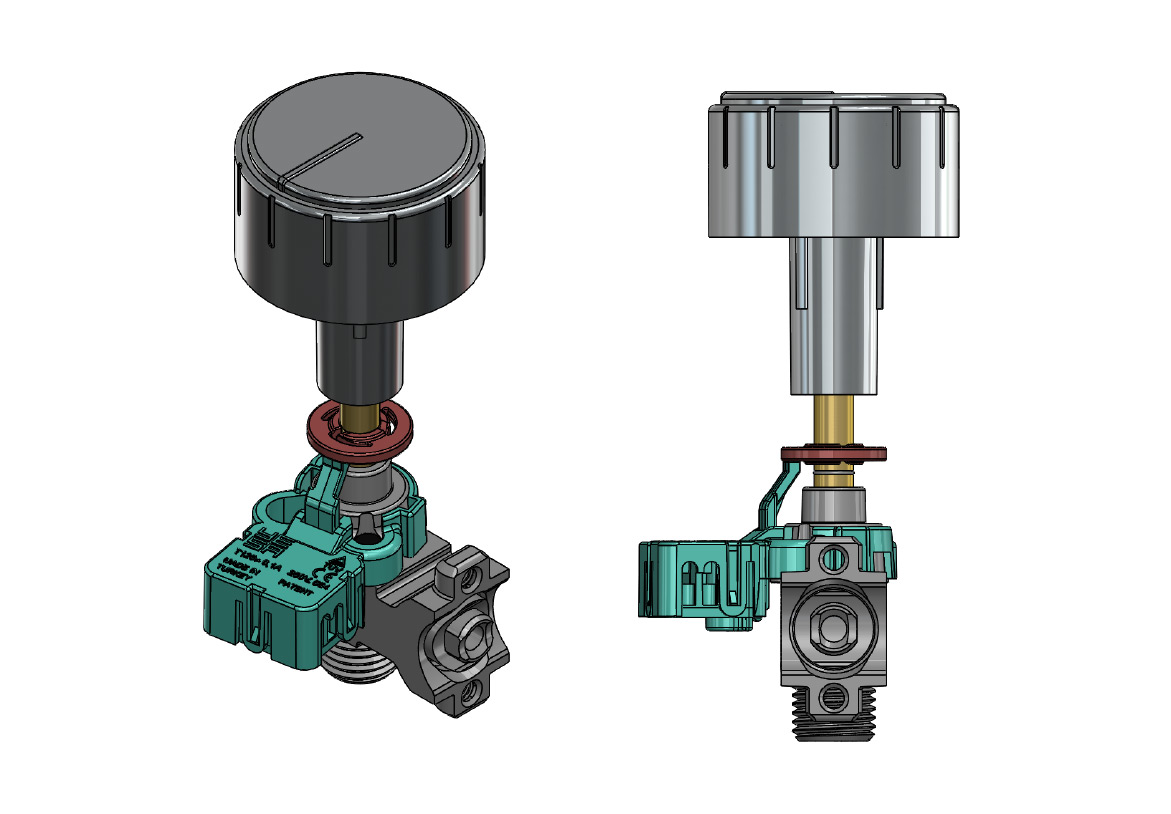

SWITCH HARNESSES 508 Series 3D Image

SWITCH HARNESSES</span> 508 3D

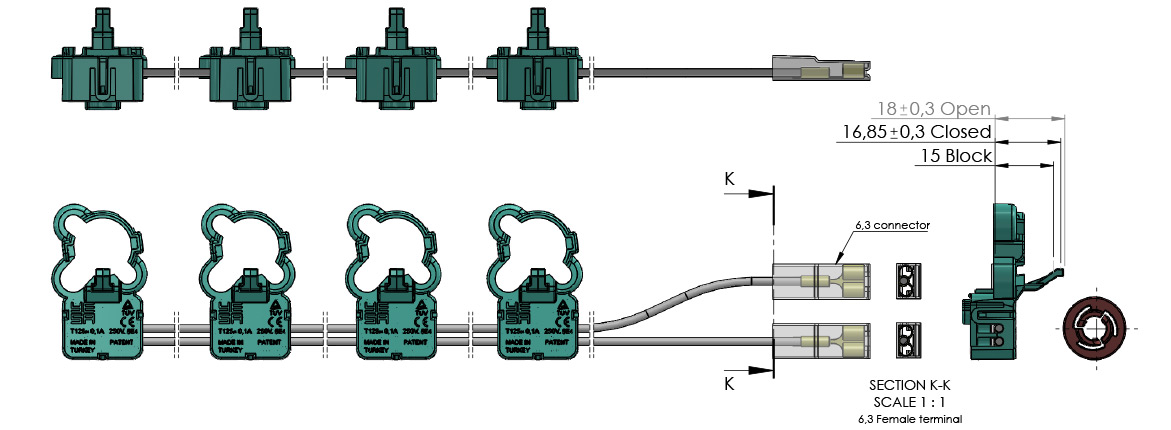

SWITCH HARNESSES 508 Series Tecnical Image

SWITCH HARNESSES</span> 508 Teknik

SWITCH HARNESSES 508 Series Tecnical Properties

  • - Test standard DIN EN61058-01
  • - Connection type Switches are parallel connected
  • - Rated voltage 250 VAC
  • - Rated current 0,1 A
  • - Temperature T125
  • - Number of operating cycles 5E4
  • - Operating force max. 650 gr.

Silicone Cable

  • - Cable cross section 0.5 mm² (16 x 0,20)
  • - Cable diameter > Ø2,1 silicon insulation
  • - Temperature > 200°C
  • - Terminal 2 pcs 6,3 x 0,8 female terminal with plastic sleeve PA66
