Piezo Igniter

Piezo Çakmak

PIEZO IGNITER

Piezo Igniter





3D Image TECNICAL IMAGE TECNICAL PROPERTIES

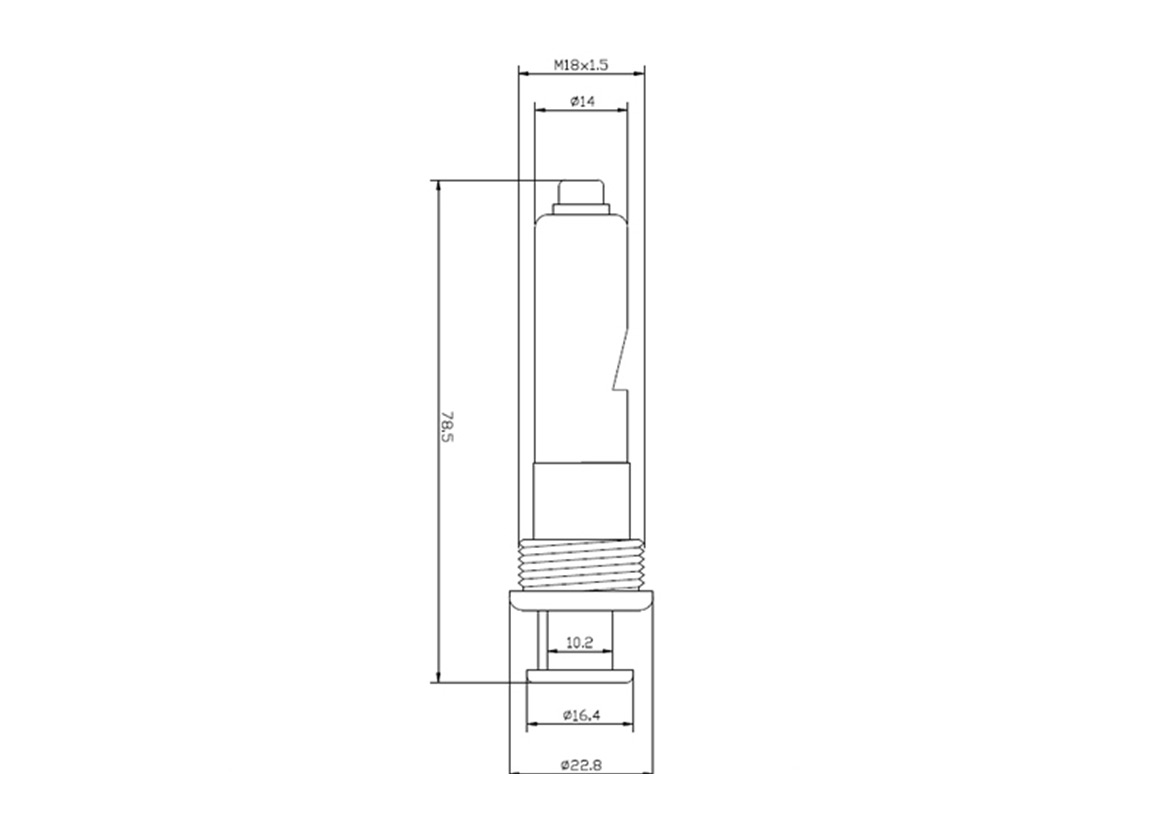

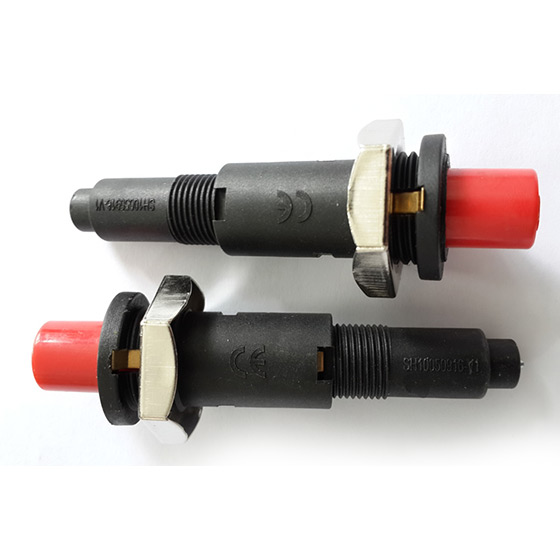

Piezo Igniter3D & Tecnical Image

Piezo Igniter

Piezo Igniters Tecnical Properties

  • - Main supply voltagei 220-240 VAC 50-60 Hz
  • - Power 0,6 VA
  • - Sparking voltage ≥ 20 kV / 2 Electrodes
  • - Spark frequance  2…..9 Hz sec
  • - Spark gap  4 mm
  • - Life 1.500.000 Spark
  • - Humidity %95 50 °C
  • - Working temperature 120 °C
  • - Storage temperature  -20 °C + 85 °C
  • - Plastic case  PA 66 GFR20
  • - Input terminals 6,3 x 0,8
  • - Output terminals 2,8 x 0,8
